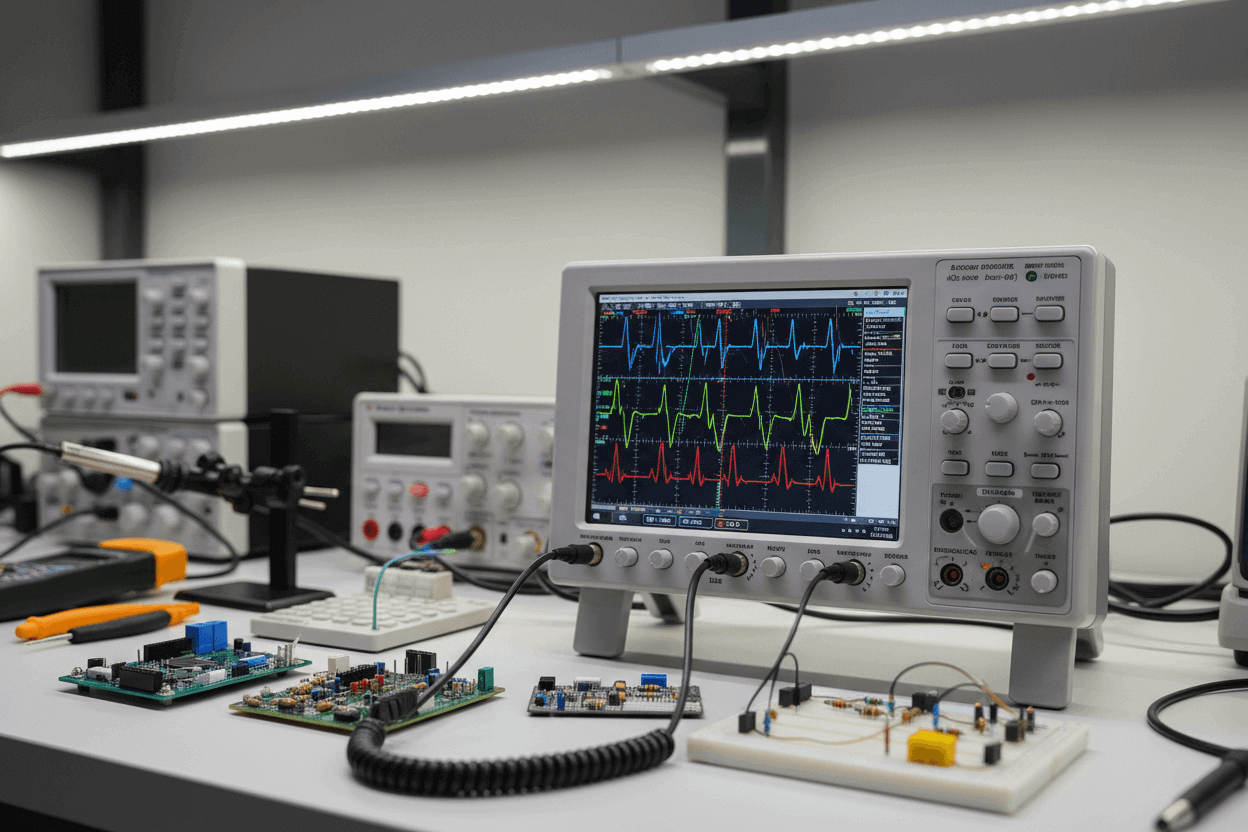

Using Benchtop Oscilloscopes for High-Speed Digital Signal Analysis

As modern electronics push boundaries with faster data rates—think USB 3.0/3.1, high-speed MCU interfaces like SPI/I²C at maximum clock speeds, Ethernet, HDMI, or PCIe—engineers face increasing challenges in validating signal integrity. Rise times are shrinking to nanoseconds, introducing issues like jitter, overshoot, ringing, and crosstalk. This is where a reliable benchtop oscilloscope for digital signals becomes indispensable for high-speed signal analysis.

Handheld or PC-based scopes may suffice for basic checks, but when debugging complex digital communication protocols or characterizing fast edge signals, benchtop models deliver the precision, screen real estate, and processing power needed to catch elusive problems.

Why Benchtop Oscilloscopes Excel in High-Speed Digital Signal Analysis

High-speed digital signals demand more than just bandwidth—they require:

• Adequate bandwidth and sampling rate: To accurately reconstruct fast edges without aliasing (rule of thumb: bandwidth 3–5x the signal's fundamental frequency, sampling at least 4–10x).
• Multi-channel capability: Simultaneously view clock, data lines, control signals, and power rails for timing correlation.
• Deep memory and advanced triggering: Capture long bursts of serial data and trigger on specific protocol errors or runt pulses.
• Specialized tools: Eye diagrams, jitter measurements, mask testing, and protocol decoding to quantify signal quality.

For example, analyzing a USB 2.0 high-speed (480 Mbps) signal needs at least 100–200 MHz bandwidth to resolve rise times around 1–2 ns. An MCU running SPI at 50 MHz+ or processing PWM with sharp edges can reveal noise or timing violations only visible on a high-sample-rate scope.

Benchtop scopes shine here with larger displays for detailed waveform inspection, physical knobs for quick adjustments, and robust probing options—making them the go-to for lab-based digital signal integrity work.

The Importance of Multi-Channel and High Sampling Rates

• Multi-channel: 4 channels allow probing data, clock, chip select, and MOSI/MISO simultaneously—essential for spotting setup/hold violations in digital buses.
• High sampling: 1 GSa/s or more ensures accurate reconstruction of fast transients, preventing missed glitches that could cause intermittent failures in production.

These features enable comprehensive analysis: overlay signals, perform math functions (e.g., differential probing), and use serial decode to read packet contents directly on-screen.

Hanmatek Benchtop Oscilloscopes: Affordable Power for Digital Signal Work

Hanmatek's DOS series offers excellent performance for high-speed digital analysis without the premium price, making professional tools accessible to engineers, educators, and small teams.

Recommended models:

• DOS1102 (110MHz, 2CH): Ideal entry point for USB 2.0, MCU SPI/I²C, and general digital debugging. 1 GSa/s sampling, deep memory, and clear 7" display.

Shop DOS1102

• DOS1104 (110MHz, 4CH): Perfect for multi-line digital buses—view clock + 3 data lines simultaneously. Shop DOS1104
• DOS1102S (110MHz, 2CH with Waveform Generator): Adds built-in AWG for stimulus-response testing—great for characterizing MCU responses to injected signals. Shop DOS1102S
• DOS1202 (200MHz, 2CH): Step up for faster protocols like USB 3.x or high-speed Ethernet edges—higher bandwidth captures even sharper transients. Shop DOS1202

All models feature intuitive interfaces, USB connectivity for data export, and reliable triggering—delivering the tools you need for real-world high-speed digital challenges.

Final Thoughts

For accurate high-speed signal analysis in USB, MCU, and digital communication systems, a benchtop oscilloscope remains the most effective choice. It provides the channels, sampling power, and visualization needed to ensure signal integrity and catch hidden issues early.

Upgrade your digital debugging setup with Hanmatek's cost-effective benchtop series today. 🛠️
