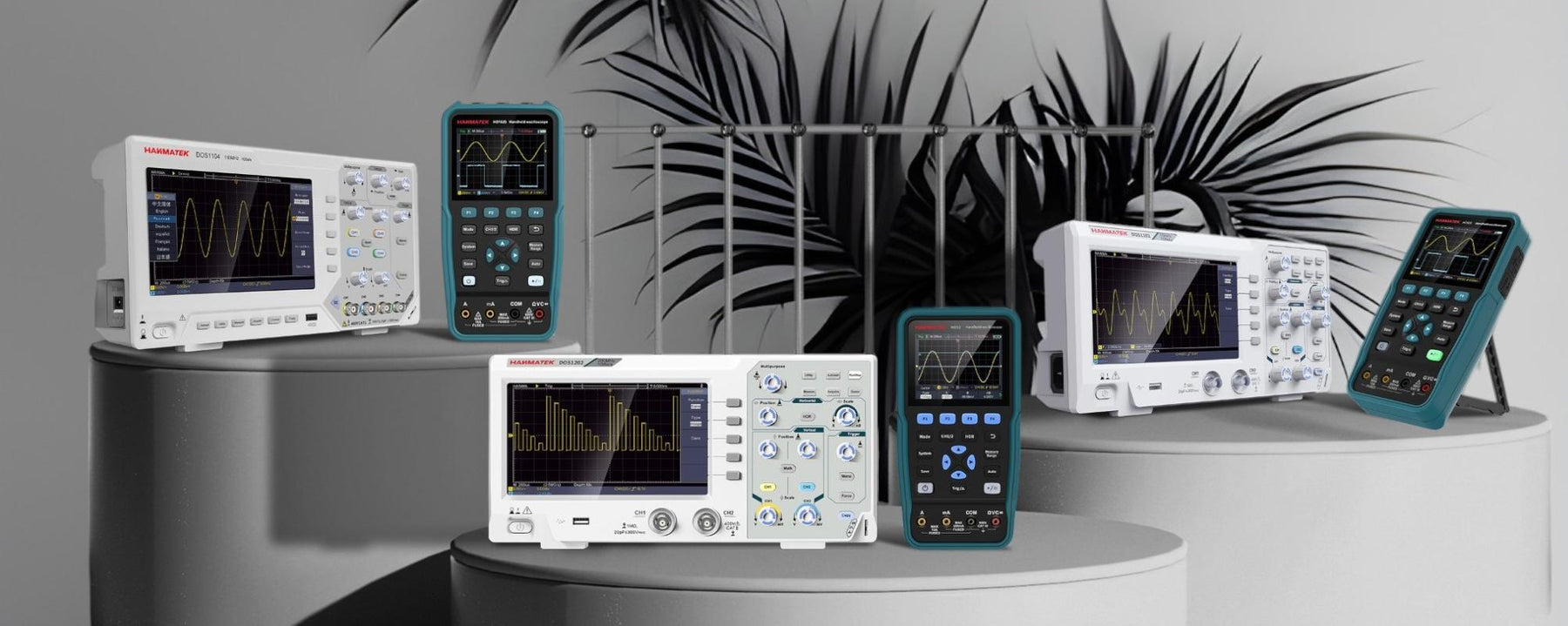

How to Use an Oscilloscope Step by Step (Hands‑On Tutorial) — Beginner Guide with Hanmatek

Introduction

Learning how to use an oscilloscope is one of the most important steps in electronics. Whether you are debugging a circuit, measuring PWM signals, testing a power supply, or exploring microcontroller projects, an oscilloscope lets you see electrical signals in real time.

Many beginners feel intimidated by oscilloscopes because of the many buttons, menus, and technical terms. The good news is that modern digital oscilloscopes — especially user‑friendly models like the Hanmatek DOS series — make signal measurement much easier than it used to be.

This hands‑on guide will walk you through the complete process of using an oscilloscope step by step, from turning it on for the first time to capturing and analyzing real signals.

By the end, you will know how to:

• Connect probes correctly and safely

• Display a stable waveform

• Measure voltage and frequency

• Adjust time and voltage scales

• Trigger signals properly

• Capture and save measurements

This tutorial is written specifically for beginners but follows real engineering workflow.

---

What Is an Oscilloscope Used For?

An oscilloscope displays voltage over time as a waveform. Instead of showing just a number like a multimeter, it shows how signals behave dynamically.

Common beginner uses include:

• Checking if a signal exists

• Measuring voltage levels

• Finding noise or ripple

• Testing PWM duty cycle

• Comparing multiple signals

• Troubleshooting circuit faults

• Observing timing relationships

If you are new to signal measurement, read our guide:
👉 What Is Oscilloscope Bandwidth (Complete Beginner Guide)

---

Oscilloscope Controls You Must Know First

Before touching any settings, understand the three most important control groups.

1. Vertical Controls (Voltage)

These control how tall the waveform appears.

Main settings:

• Volts per division (V/div)

• Channel selection

• Vertical position

If the waveform is too small → decrease V/div.
If it goes off screen → increase V/div.

---

2. Horizontal Controls (Time)

These control how wide the waveform appears.

Main setting:

• Time per division (s/div)

Fast signals need smaller time scale.
Slow signals need larger time scale.

---

3. Trigger Controls (Stability)

Triggering stabilizes the waveform so it stops scrolling.

Without proper triggering, signals look unstable or moving.

Key settings:

• Trigger source

• Trigger level

• Trigger mode

Modern Hanmatek oscilloscopes include Auto trigger, which beginners should start with.

---

Step‑by‑Step: How to Use an Oscilloscope

Follow this exact sequence. It matches how engineers actually work.

---

Step 1 — Power On and Reset

Turn on the oscilloscope and wait for startup.

Recommended:

• Press Default Setup or Auto Setup

• This clears previous settings

Hanmatek tip:
Auto Setup quickly configures scale and trigger automatically.

---

Step 2 — Connect the Probe Correctly

Attach the probe to Channel 1.

Important safety rule:
Always connect the probe ground clip to circuit ground.

Then touch the probe tip to the signal point.

Wrong grounding can cause:

• Measurement errors

• Noise

• Equipment damage

---

Step 3 — Use the Built‑In Calibration Signal (Practice First)

Every oscilloscope includes a test signal output.

This is usually a square wave (often 1 kHz).

Why use it?

• Known stable signal

• Safe to test

• Perfect for learning controls

Steps:

1. Connect probe tip to calibration terminal

2. Connect ground clip

3. Press Auto Setup

You should see a square wave.

If not — adjust vertical and time scale.

---

Step 4 — Adjust Vertical Scale (Voltage)

Goal: make waveform fill screen vertically.

On Hanmatek:
Rotate V/div knob.

Too small → zoom in
Too large → zoom out

Professional tip:
Use 70–80% of screen height for best measurement accuracy.

---

Step 5 — Adjust Time Scale (Horizontal)

Goal: see several cycles of waveform.

On Hanmatek:
Rotate time/div knob.

Fast signals → shorter time base
Slow signals → longer time base

Best practice:
Display 2–5 cycles clearly.

---

Step 6 — Stabilize the Waveform Using Trigger

If waveform moves or rolls:

Adjust trigger level until signal locks.

Hanmatek beginner workflow:

1. Set trigger source = CH1

2. Trigger mode = Auto

3. Adjust level near middle of waveform

When correct → waveform stops moving.

---

Step 7 — Measure Voltage Automatically

Modern oscilloscopes calculate values instantly.

Press Measure and select:

• Peak‑to‑peak voltage

• RMS voltage

• Maximum voltage

Hanmatek digital scopes provide one‑button measurement.

---

Step 8 — Measure Frequency

Frequency is how often signal repeats.

Method 1 (automatic):
Select Frequency measurement.

Method 2 (manual):

1. Measure one period

2. Frequency = 1 / period

---

Step 9 — Observe Real Circuit Signals

After practicing calibration signal, test real circuits.

Beginner projects:

• Arduino PWM output

• LED blinking circuit

• DC power supply ripple

• Sensor output voltage

Always start with high voltage scale and reduce gradually.

---

Step 10 — Capture and Save Waveforms

Hanmatek oscilloscopes support USB storage.

You can save:

• Waveform images

• Measurement data

• Screen captures

Useful for:

• Reports

• Debugging records

• Comparing signals

---

Real Example: Measuring PWM Signal

1. Connect probe to PWM pin

2. Auto setup

3. Adjust time scale

4. Measure frequency

5. Measure duty cycle

To understand PWM deeper, read:
👉 How to Measure PWM Signals Accurately

---

Common Beginner Mistakes (Avoid These)

Not Connecting Ground Properly

Causes noise and unstable readings.

Using Wrong Probe Attenuation

Match probe setting (1× or 10×) to oscilloscope menu.

Learn more:
👉 Oscilloscope Probe Selection Guide

Zooming Too Much

Signal clipping hides real shape.

Ignoring Trigger

Unstable waveform = wrong trigger settings.

---

Why Hanmatek Oscilloscopes Are Beginner Friendly

Hanmatek digital oscilloscopes are designed for learning and practical electronics work.

Key advantages:

• Simple interface

• Fast Auto Setup

• Clear color display

• Multi‑channel debugging

• USB data saving

• Excellent price‑performance ratio

For most beginners, a 4‑channel model like the DOS1104 provides long‑term flexibility.

---

Recommended Beginner Practice Plan

Day 1 — Learn controls using calibration signal
Day 2 — Measure DC power supply ripple
Day 3 — Measure Arduino PWM
Day 4 — Compare two signals
Day 5 — Capture and export waveform

After one week, you will be comfortable using an oscilloscope.

---

Frequently Asked Questions

Is using an oscilloscope difficult?

No. With Auto Setup and guided practice, beginners can learn in one day.

Can an oscilloscope replace a multimeter?

No. They serve different purposes.

Read:
👉 Oscilloscope vs Multimeter — When to Use Each Tool

What should I measure first?

Always start with the built‑in calibration signal.

---

Final Thoughts

Learning how to use an oscilloscope is a foundational skill for anyone working with electronics. Once you understand voltage scale, time scale, and triggering, everything else becomes intuitive.

With modern beginner‑friendly instruments like Hanmatek digital oscilloscopes, signal measurement is faster and easier than ever.

Start simple, practice daily, and soon waveform analysis will feel natural.

Happy measuring!
