Introduction

Choosing the right oscilloscope probe is critical for accurate signal measurement. Many beginners overlook probe selection, which can lead to distorted readings, measurement errors, or even damage to sensitive electronics.

This guide focuses on Hanmatek oscilloscope probes, explaining the difference between 1× and 10× attenuation, and how to select the correct probe for your measurements. We also include hands-on tips for using the probes safely and effectively.

Why Probe Selection Matters

Probes act as the interface between your circuit and the oscilloscope. Key considerations include:

• Voltage rating: Ensure the probe can handle the maximum signal voltage.

• Bandwidth: The probe should support your oscilloscope's frequency range.

• Attenuation factor: 1× for low-voltage signals, 10× for higher voltage or minimal loading.

• Loading effect: A probe introduces some capacitance and resistance; higher attenuation reduces impact.

Using the wrong probe can result in inaccurate waveform display or even damage to your oscilloscope and circuit.

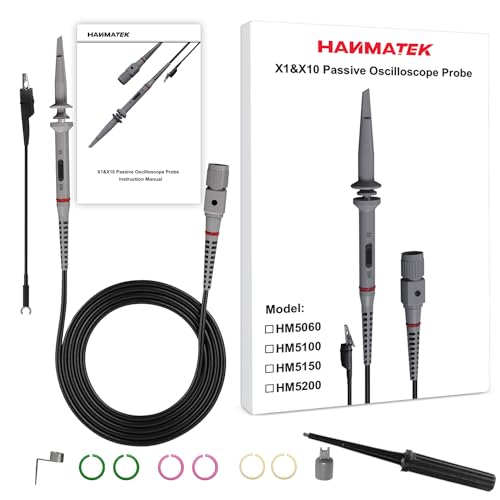

Hanmatek Oscilloscope Probes Overview

1. HM5100 Voltage Oscilloscope Probe (100MHz, 600V)

Product Link: Hanmatek HM5100

• Bandwidth: 100 MHz

• Voltage rating: up to 600 V

• Attenuation: Switchable 1× / 10×

• Ideal for: High-voltage lab measurements and general electronics

• Key benefit: Safety and accuracy with high voltage signals

2. HM5060 Universal Oscilloscope Probe (60MHz, 1×/10×)

Product Link: Hanmatek HM5060

• Bandwidth: 60 MHz

• Voltage rating: Suitable for general electronics circuits

• Attenuation: Switchable 1× / 10×

• Ideal for: Arduino, microcontrollers, low-voltage electronics

• Key benefit: Beginner-friendly, versatile, portable kit

1× vs 10× Probe Explained

1× Probe

• Attenuation: None, signal is passed directly (1:1)

• Advantages: High sensitivity, good for low-voltage signals

• Disadvantages: Adds more capacitive load to the circuit, can distort high-frequency signals, lower voltage rating

10× Probe

• Attenuation: Signal reduced by factor of 10

• Advantages: Reduces capacitive load, higher voltage rating, better high-frequency response

• Disadvantages: Signal is weaker on oscilloscope screen, requires adjusting vertical scale

Beginner tip: Use 10× for Arduino PWM, microcontroller signals, or any circuit where minimizing loading effect is critical.

How to Connect Your Probe

1. Attach probe tip to signal point.

2. Connect ground clip to circuit ground.

3. Set probe switch to correct attenuation (1× or 10×).

4. On Hanmatek oscilloscope, select matching input attenuation setting.

Safety note: Always verify voltage rating. Never exceed the probe's maximum voltage.

Hands-On Measurement Examples

Example 1: Arduino PWM Output

• Use HM5060 at 10× for minimal loading

• Auto Setup waveform

• Measure duty cycle and frequency accurately

Example 2: DC Power Supply Ripple

• Use HM5100 at 10× for higher voltage

• Check peak-to-peak voltage

• Capture waveform with minimal distortion

Example 3: Microcontroller Logic Signals

• Use 1× if low voltage and short wiring

• Observe fast transitions accurately

Example 4: Motor Control Circuit

• Use 10× to protect oscilloscope input

• Measure PWM frequency vs motor speed

Example 5: LED Driver Testing

• Select 1× for low-voltage LED PWM signals

• Verify dimming waveform stability

Tips for Accurate Probe Usage

• Match attenuation setting with oscilloscope input

• Use shortest possible ground connection to minimize noise

• Check probe tip for wear or damage

• Clean connections to prevent high-frequency artifacts

• Regularly calibrate using oscilloscope built-in test signal

Conclusion

Selecting the correct oscilloscope probe is essential for reliable and accurate signal measurement. Hanmatek HM5100 and HM5060 probes provide beginners and advanced users with flexible options for low- and high-voltage circuits. Understanding 1× vs 10× attenuation ensures proper waveform visualization, minimal loading, and safe measurement practices.

Practice using these probes on simple circuits first, gradually progressing to complex PWM, motor control, and high-voltage projects for full confidence.
