What Is the Rule of Five for Oscilloscopes? (Why It Matters in 2026)

When selecting an oscilloscope, one of the most important — yet often misunderstood — concepts is the Rule of Five.

If you’ve ever wondered how much bandwidth you really need for your signals, this rule provides a practical, industry-accepted guideline to ensure accurate measurements.

What Is the Rule of Five?

The Rule of Five (also called the 5x Rule) states:

Your oscilloscope’s bandwidth should be at least 5 times the highest frequency component of the signal you want to measure.

For example:

• If your fastest signal has a 100 MHz frequency component, choose an oscilloscope with at least 500 MHz bandwidth.
• For a 50 MHz digital clock, aim for 250 MHz or higher bandwidth.

This rule ensures the oscilloscope can accurately capture not just the fundamental frequency, but also the critical higher harmonics that determine the true shape, rise time, and integrity of your signal.

Three Key Facts About the Rule of Five

Fact 1: Higher Harmonics Determine Waveform Accuracy Real-world signals, especially square waves, digital pulses, and PWM waveforms, contain multiple harmonics. The 5th harmonic plays a major role in preserving edge sharpness and overall fidelity. Applying the Rule of Five typically keeps amplitude error below ±2%, delivering far more reliable measurements than lower multipliers.

Fact 2: The Rule Balances Accuracy and Practicality While a more conservative “Rule of Three” (3x bandwidth) may suffice for rough amplitude or basic frequency checks, the Rule of Five is widely recommended by leading test equipment manufacturers for engineering-grade results. It provides the sweet spot for most digital and analog troubleshooting without unnecessary overspending.

Fact 3: Bandwidth Should Align with Rise Time Requirements A scope’s rise time is approximately 0.35 / Bandwidth. Choosing bandwidth according to the Rule of Five ensures the instrument can accurately capture your signal’s edge rates, which is critical for debugging timing issues, overshoot, ringing, and signal integrity problems in modern circuits.

Why the Rule of Five Exists

Most real-world signals (especially square waves, digital pulses, and PWM signals) contain many harmonic frequencies. The 5th harmonic is particularly important because it significantly contributes to the sharp edges and overall waveform fidelity.

• Using only 3x bandwidth (a more conservative “Rule of Three”) may be acceptable for rough amplitude checks.
• The Rule of Five provides much better accuracy — typically keeping amplitude error under ±2%.

This guideline is widely recommended by leading brands like Tektronix and Keysight for reliable digital and analog measurements.

How to Apply the Rule of Five in Practice

1. Identify the highest frequency or fastest edge rate in your circuit (e.g., clock frequency, PWM frequency, or rise time).
2. Multiply that frequency by 5.
3. Choose an oscilloscope whose bandwidth meets or exceeds that value.

Bonus Tip: Also consider the oscilloscope’s rise time. A good scope should have a rise time fast enough to accurately capture your signal’s edges (Rise Time ≈ 0.35 / Bandwidth).

Real-World Example

You’re working on a 100 MHz microcontroller project with fast digital edges. According to the Rule of Five → You should choose a scope with ≥ 500 MHz bandwidth for high accuracy.

However, for many everyday applications (Arduino, power supply debugging, automotive sensors, or general repair), a 100 MHz or 110 MHz scope is more than sufficient and offers excellent value.

Choosing the Right Oscilloscope in 2026

Understanding the Rule of Five helps you avoid two common mistakes:

• Buying too little bandwidth (inaccurate measurements)
• Overspending on excessive bandwidth you don’t need

If you’re looking for practical recommendations that follow good engineering principles while staying affordable, check out this comprehensive resource:

Oscilloscope Buying Guide – Bandwidth, Sampling Rate & More

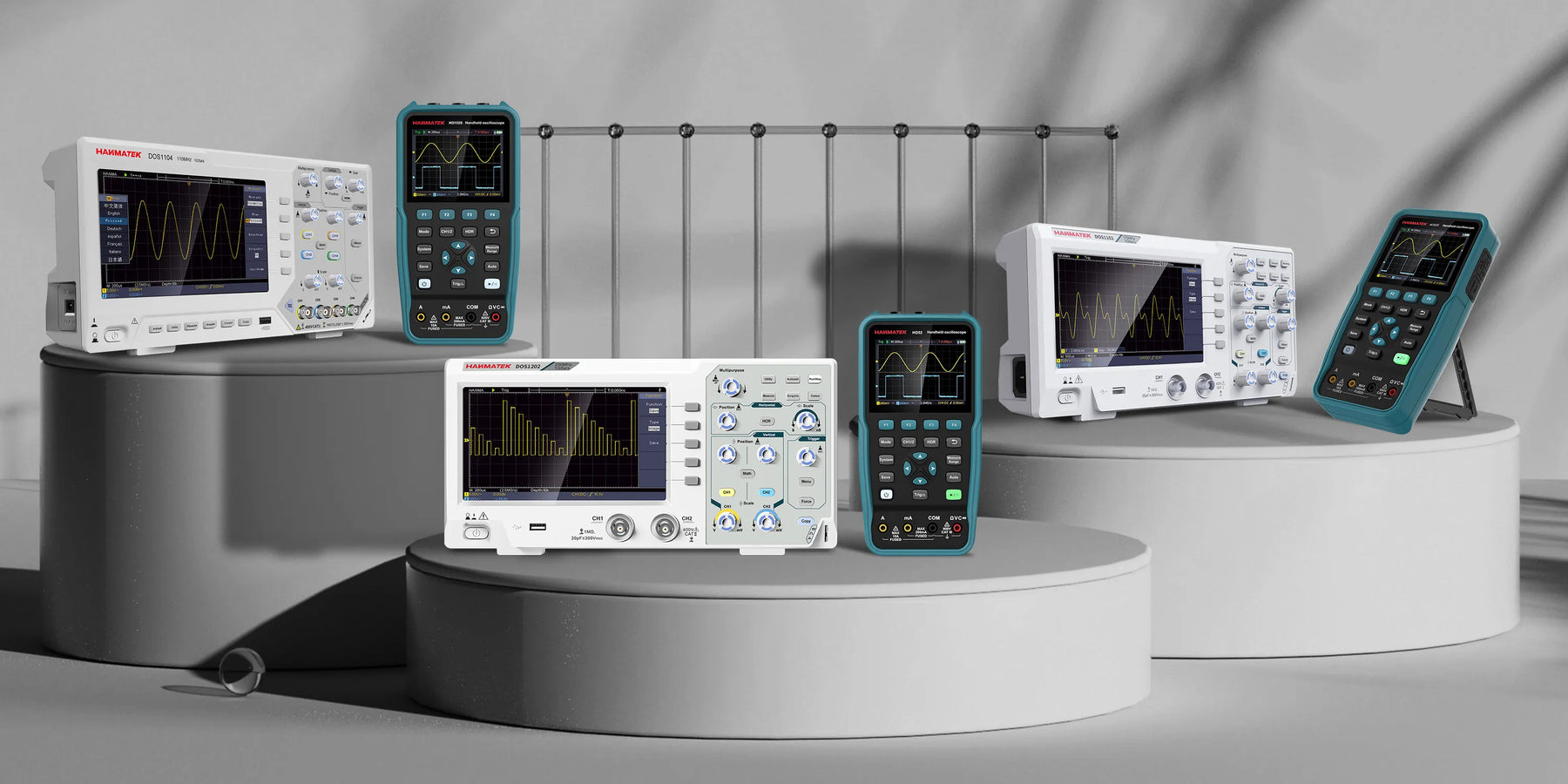

You’ll also find a wide selection of reliable oscilloscopes suited for different needs here: 👉 Browse All Hanmatek Oscilloscopes

Final Thoughts

The Rule of Five is not a strict law, but a smart, proven guideline that helps engineers and technicians select the right tool for accurate, trustworthy measurements.

By applying this rule, you can confidently choose an oscilloscope that delivers real performance without overspending.
