What Is an Oscilloscope? Understanding & Exploring Hanmatek's Full Range
What Is an Oscilloscope?
An oscilloscope is an essential electronic test instrument that displays voltage signals over time. It helps visualize waveform characteristics like frequency, amplitude, and noise—ideal for diagnostics, analysis, and troubleshooting in electronics and engineering.
Types of Oscilloscopes
- Desktop Oscilloscopes: Feature-rich, ideal for lab environments and development work.
- Handheld Oscilloscopes: Portable and lightweight, perfect for field testing and education.
- Clamp Oscilloscopes: Combine current clamp meters and oscilloscopes for power and industrial diagnostics.

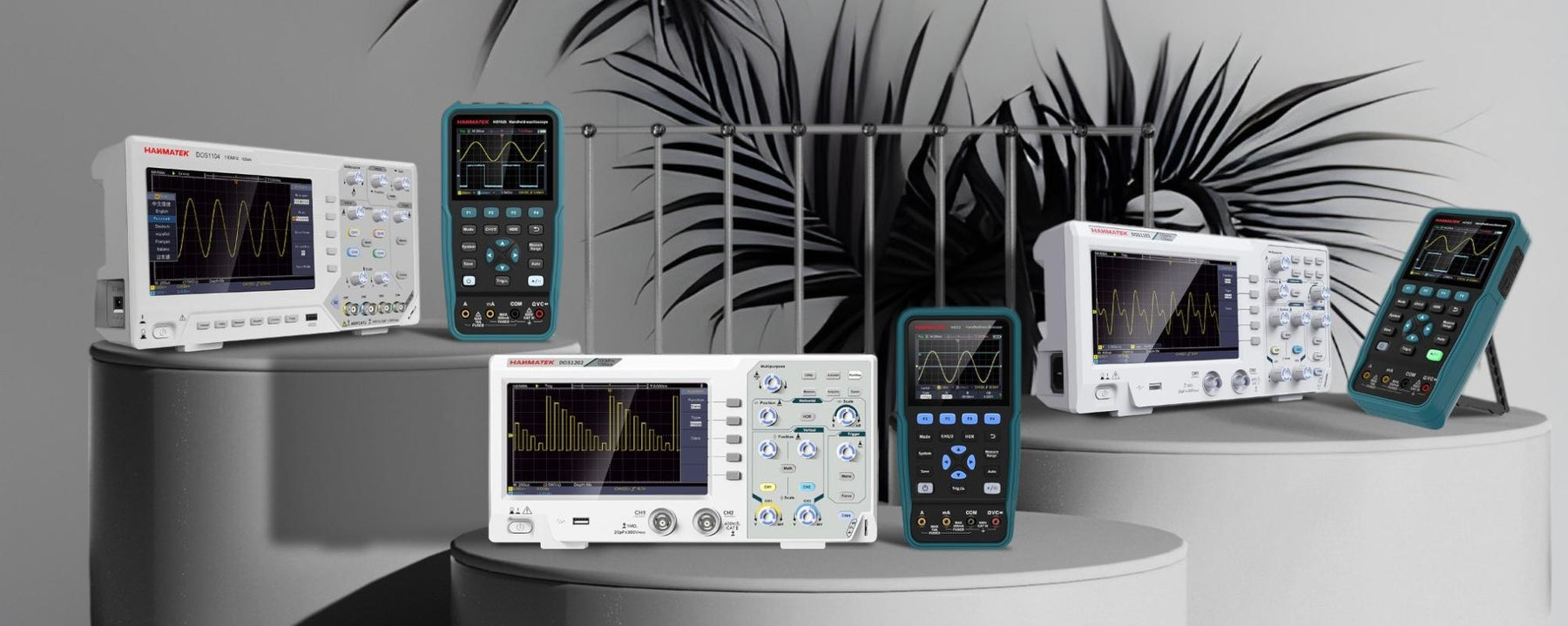

Hanmatek Desktop Oscilloscopes
DOS1102
- 110 MHz bandwidth, 500 MS/s sampling rate, dual channels
- 7” HD TFT screen, 16 waveform memory groups
- USB flash drive storage, built-in frequency and current measurement
DOS1102S – With Waveform Generator
- Built-in waveform generator up to 10 MHz
- Supports FFT and math analysis
- Multilingual UI, lightweight design (1.1kg)
DOS1202
- 200 MHz bandwidth, 1 GS/s sampling rate
- Advanced SCPI & LabVIEW support, deep waveform memory
- Custom measurement menu, USB data export
DOS1104 – 4 Channels
- 110 MHz bandwidth, 1 GS/s, 4-channel signal analysis
- High color-resolution TFT display with multiple waveform tracking
Hanmatek Handheld Oscilloscopes
HO11 – Ultra-Portable
- 10 MHz bandwidth, 48 MS/s sampling, 2.8” TFT display
- ±400V range, USB-C rechargeable, only 166g
HO52 / HO52S – 2-in-1 & 3-in-1
- 50 MHz dual-channel oscilloscope + multimeter (HO52)
- HO52S adds a 25 MHz signal generator
- 3.5” display, memory backup, waveform comparison
HO102 / HO102S – Advanced Handheld
- 100 MHz bandwidth, 250 MSa/s, dual channel
- Multimeter + waveform save/export + 8 languages
- USB-C powered with large waveform storage
Hanmatek Clamp Oscilloscope
CO601 – Oscilloscope + Current Clamp
- 1 MHz analog bandwidth, 5 MS/s sampling rate
- Measures up to 600A AC/DC, 1000V
- Bluetooth data logging, CSV export, 2.8” display
Which Model Is Right for You?
- Lab & R&D: DOS1202, DOS1104
- General Electronics: DOS1102, DOS1102S
- Field Diagnostics: HO52S, HO102S
- Automotive & Power Systems: CO601
- Education & Entry Level: HO51, HO11
