Can I Measure 230V with an Oscilloscope Safely?

Can I Measure 230V with an Oscilloscope Safely? (Important Safety Guide)

Short Answer: Yes, you can measure 230V (mains voltage) with an oscilloscope — but only if you do it correctly and use the right equipment.

Measuring high voltage like 230V AC is one of the most dangerous things you can do with an oscilloscope if proper safety precautions are ignored. In this guide, we’ll explain the risks and show you how to measure 230V safely.

Why Measuring 230V with an Oscilloscope Is Risky

Standard oscilloscope probes and inputs are often rated only for low voltages (usually under 300V peak when using 10X probes). Directly connecting a cheap oscilloscope to 230V mains can result in:

• Damage to the oscilloscope
• Electric shock to the user
• Fire hazard or equipment destruction

Fact 1: Standard Probes and Scopes Have Limited Voltage Ratings Most entry-level 10X probes are rated for CAT II 300V or similar. Exceeding these ratings on 230V mains (325V peak) risks dielectric breakdown, arcing, or instrument destruction. Industry safety standards (IEC 61010) emphasize that proper CAT-rated equipment is mandatory for mains work to prevent user injury and equipment failure.

Fact 2: Grounding Issues Create Major Shock Hazards Oscilloscopes typically have their ground reference tied to earth. Connecting the ground clip to a live mains conductor can create a dangerous short circuit or place hazardous voltage on the scope chassis. Differential measurement techniques or isolated instruments are strongly recommended to eliminate this common and often overlooked risk in mains troubleshooting.

Fact 3: Handheld Oscilloscopes Offer Better Practical Safety for Field Work Dedicated handheld 3-in-1 instruments with robust input protection and floating or improved isolation designs provide a safer and more convenient option for field measurements on 230V systems compared to traditional grounded benchtop models. When paired with correctly rated probes, these tools enable safer waveform analysis of mains, inverters, and power electronics.

How to Safely Measure 230V with an Oscilloscope

To measure mains voltage safely, you must consider these critical factors:

1. Use Proper Probes with High Voltage Rating

• Always use 10X probes (they increase the voltage rating 10 times).
• Ensure your probes are rated for at least CAT II 300V or higher.
• For added safety, use CAT III or CAT IV rated probes when working with mains power.

2. Check Your Oscilloscope’s Input Rating

Most handheld oscilloscopes have better isolation and safety ratings than cheap USB or entry-level benchtop models.

3. Use Correct Measurement Technique

• Never connect the ground clip directly to live mains neutral or phase without understanding the grounding scheme.
• Use differential measurement techniques when possible.
• Consider using a high-voltage differential probe for maximum safety.

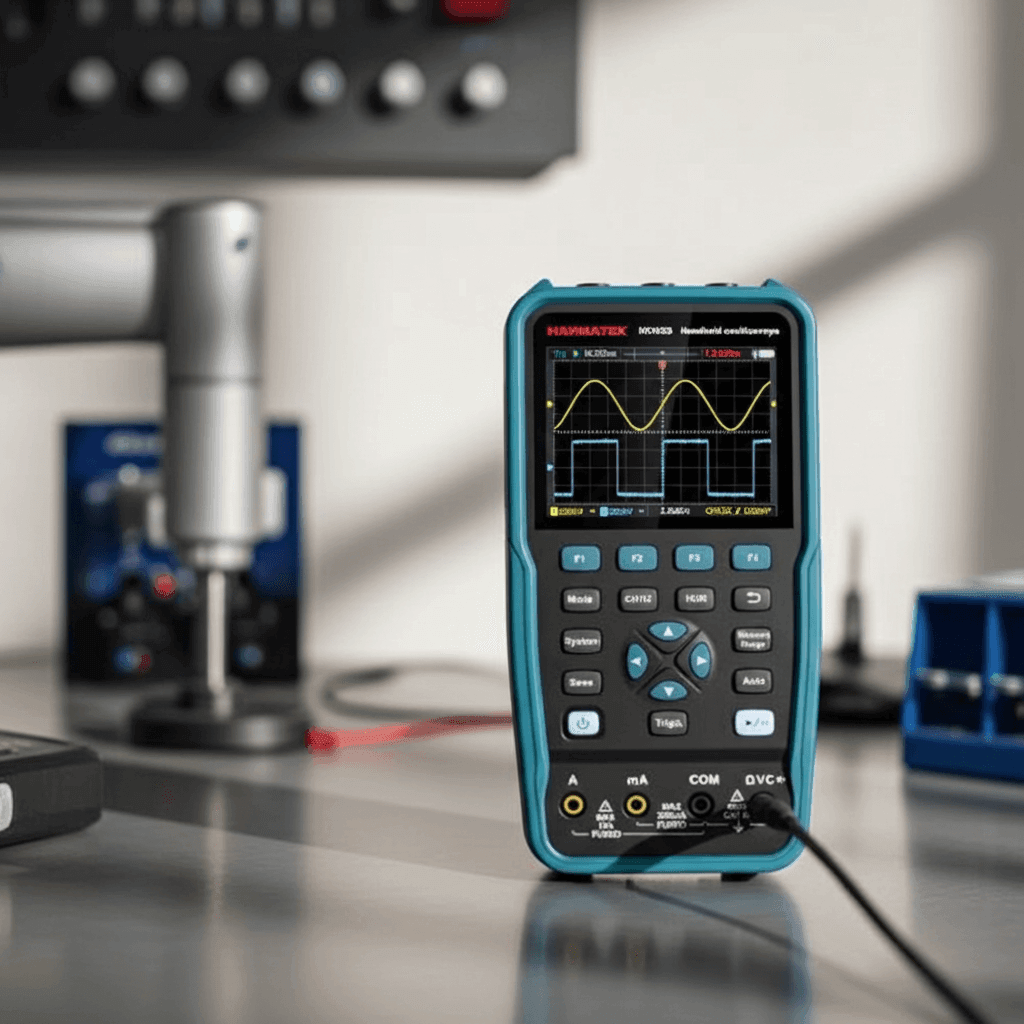

Recommended Safe Solution: HANMATEK HO102S

For safely measuring and analyzing 230V AC signals in the field, the HANMATEK HO102S is a reliable and practical choice.

Why the HO102S is safer and more suitable:

• Robust handheld design with good input protection
• 100MHz bandwidth with solid build quality
• True 3-in-1 functionality (Oscilloscope + Multimeter + Signal Generator)
• Designed with portability and field safety in mind
• Clear 3.5" TFT display for easy reading

While no oscilloscope is 100% risk-free when measuring mains voltage, the HO102S offers a much safer and more convenient experience compared to many low-cost alternatives, especially when paired with proper high-voltage-rated probes.

Safety Rules You Must Follow

• Never work alone when measuring mains voltage.
• Always use insulated tools and wear proper PPE.
• Double-check probe ratings before connecting.
• Use 10X mode and verify your oscilloscope’s maximum input voltage.
• Consider using an isolation transformer for extra safety.

Final Advice

Yes, you can measure 230V with an oscilloscope — but safety must come first.

For technicians and engineers who frequently need to inspect power lines, inverters, or mains-powered equipment, a well-built handheld 3-in-1 oscilloscope like the HANMATEK HO102S is one of the most practical and safer options available.

Stay safe and measure smart.

👉 Buy the HANMATEK HO102S 3-in-1 Handheld 100MHz Oscilloscope Multimeter

Have you ever measured mains voltage with an oscilloscope? What safety measures do you follow? Share your experience in the comments — it could help others stay safe!
