Thermal Camera for HVAC System Diagnostics

Thermal Camera technology is essential for inspecting HVAC systems, ensuring comfort and energy efficiency in residential, commercial, and industrial buildings. Common issues—such as uneven cooling/heating, refrigerant leaks, poor insulation, or blocked coils—can reduce system performance and increase energy costs. Using a Thermal Camera provides a fast, non-invasive method to visualize temperature differences across the entire system, enabling technicians to pinpoint hot and cold spots quickly. The HANMATEK TI240 Thermal Camera excels at detecting uneven temperature distribution, helping HVAC professionals perform accurate diagnostics, optimize energy efficiency, and maintain system reliability.

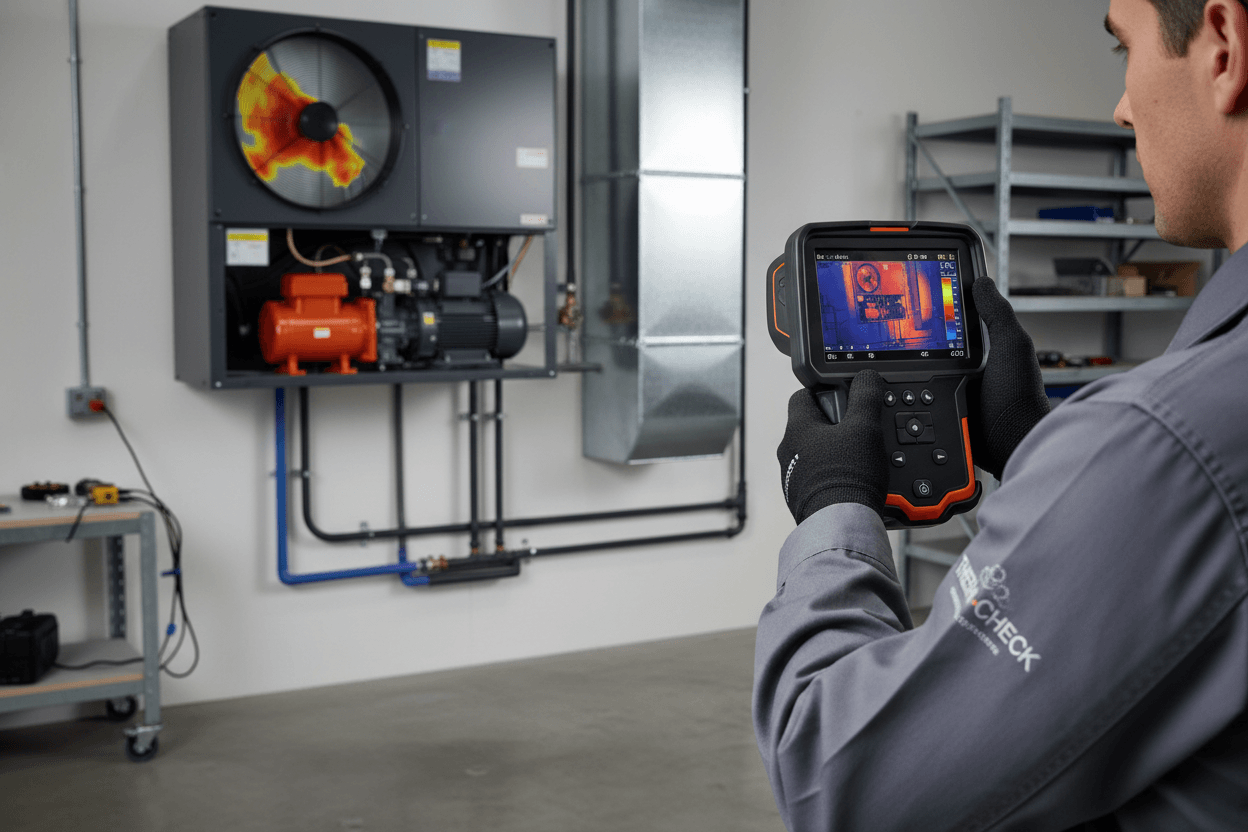

These thermal images clearly show temperature variations in HVAC systems — bright red areas indicate hot spots while blue/purple show cold zones, revealing inefficiencies at a glance:

Energy Efficiency Problems in Air Conditioning Systems

HVAC systems lose efficiency due to several common issues:

• Uneven cooling/heating — Caused by dirty evaporator or condenser coils, low refrigerant, blocked airflow, or duct leaks
• Refrigerant leaks — Leading to reduced cooling capacity and higher compressor workload
• Poor duct insulation or leaks — Allowing conditioned air to escape, creating hot/cold spots in rooms
• Faulty components — Overheating motors, failing capacitors, or restricted airflow
• Thermostat or zoning issues — Resulting in inconsistent temperatures throughout the building

These problems not only reduce comfort but can increase energy consumption by 20–30% or more. Traditional diagnostics rely on gauges and manual checks, which are time-consuming and often miss hidden issues.

Thermal imaging instantly maps temperature gradients, making it easy to spot anomalies without shutting down the system.

See this thermal scan highlighting uneven cooling on an air conditioner evaporator coil — the patchy pattern indicates restricted airflow or dirt buildup:

How the HANMATEK TI240 Quickly Discovers Uneven Temperature Distribution

The HANMATEK TI240 thermal camera, with its 240×240 pixel resolution and high thermal sensitivity (detecting differences as small as 0.08°C), is an invaluable tool for HVAC technicians. It enables:

• Rapid scanning of indoor units, outdoor condensers, ducts, and registers
• Clear visualization of cold spots (poor cooling) and hot spots (overheating components)
• Detection of duct leaks, insulation gaps, and airflow restrictions
• Non-contact inspection during normal operation
• Image and data capture for customer reports and documentation

By identifying problems early, technicians can clean coils, recharge refrigerant, seal ducts, or replace faulty parts — restoring efficiency, lowering energy costs, and extending system life.

HVAC professionals frequently use the portable HANMATEK TI240 for on-site diagnostics — here it's revealing temperature inconsistencies across an air conditioning unit:

For more information and to add this powerful diagnostic tool to your kit, visit the HANMATEK TI240 product page.

In conclusion, thermal imaging revolutionizes HVAC diagnostics by providing instant insight into energy efficiency issues. The HANMATEK TI240 empowers technicians to detect and resolve uneven temperature problems quickly, ensuring optimal performance and significant energy savings. Upgrade your HVAC toolkit today — explore the HANMATEK TI240.
