3.5-inch TFT HD LCD screen, 65535 colors, 320*240 pixels
20,000-count multimeter functionality
Delivery time
3-4 Business Days
Hanmatek HO15 Handheld Oscilloscope is designed for engineers, technicians, and electronics enthusiasts who need reliable performance in a portable form. Combining advanced measurement capabilities with a lightweight design, the HO15 is the perfect tool for both fieldwork and bench diagnostics.
High Performance in Your Hand

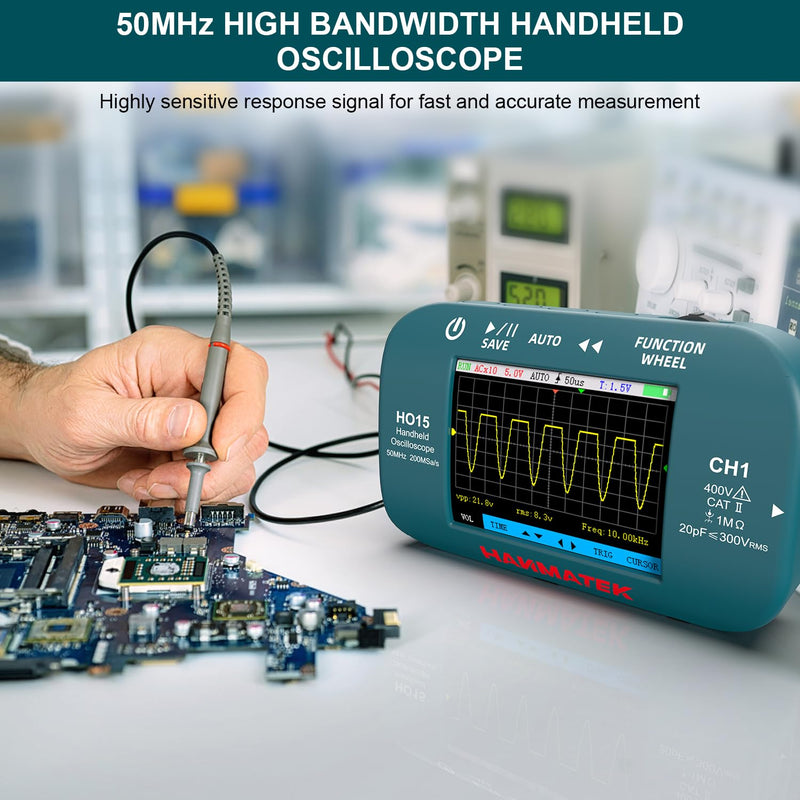

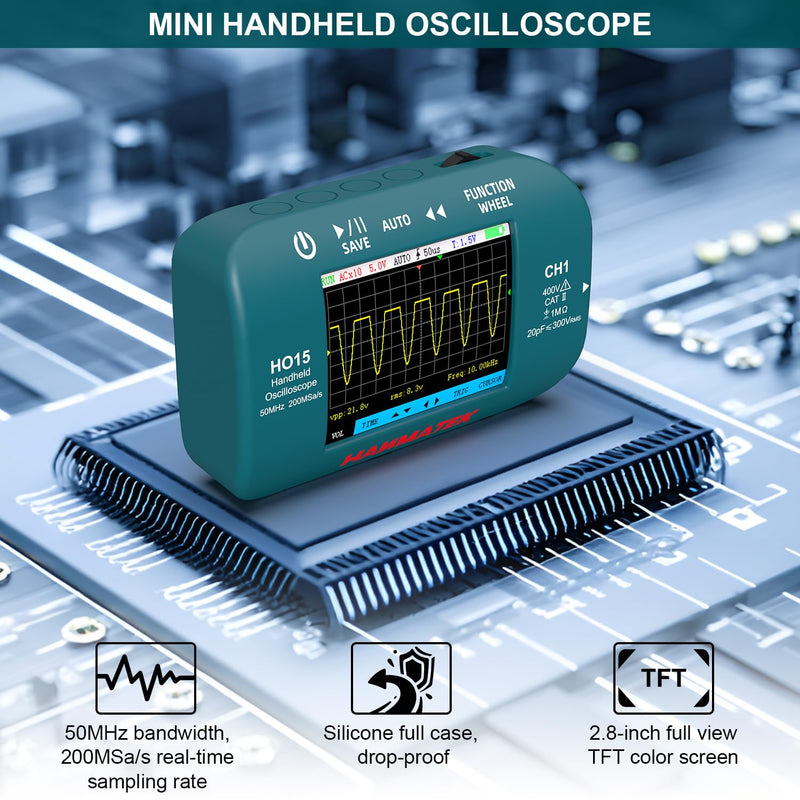

Equipped with a 50MHz bandwidth and 200MSa/s real-time sampling rate, the HO15 captures accurate and stable waveforms with exceptional clarity. Whether you're troubleshooting circuits or analyzing signals, you won’t miss critical details.
Wide Voltage Measurement Range
With dual probe attenuation (X1/X10), the HO15 supports voltage measurements from ±40V up to ±400V, making it suitable for both low-voltage electronics and high-voltage applications.
Built for Portability

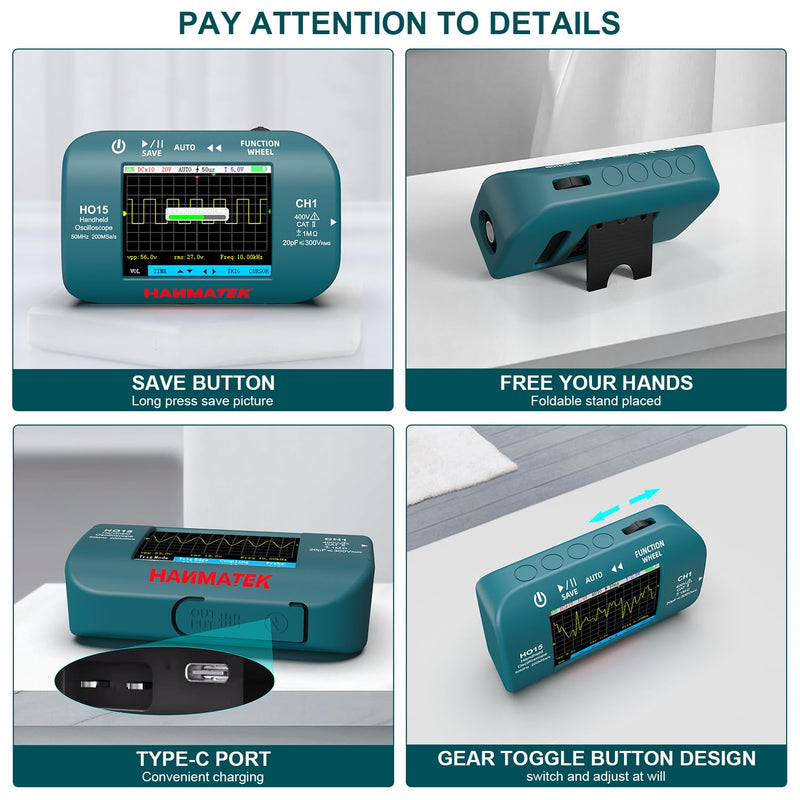

Weighing only 166g, this oscilloscope is truly pocket-sized. The built-in 1800mAh rechargeable lithium battery and Type-C charging interface ensure long-lasting performance wherever your work takes you.
Clear & Intuitive Display

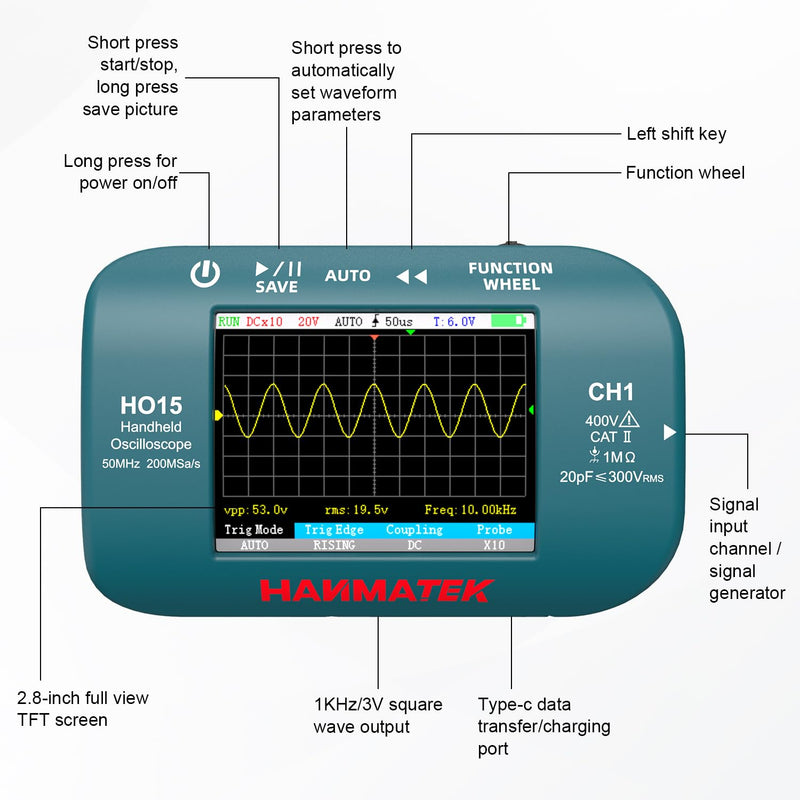

The 2.8-inch full-color TFT screen provides sharp, easy-to-read waveform visualization, even in bright environments. The intuitive user interface allows for quick setup and smooth operation for both beginners and professionals.
Precision Triggering Modes
Capture signals with confidence using Auto, Normal, and Single edge-trigger modes. These advanced features ensure accurate detection of both stable and intermittent signals.
Designed for Real-World Use
Waveform pause and data hold functions
USB connectivity for waveform storage
Simple, user-friendly menu system
Ideal for maintenance, education, and field diagnostics
The Hanmatek HO15 is where portability meets precision—empowering you to diagnose, analyze, and solve with confidence, anytime and anywhere.
How to Use Hanmatek HO51 Handheld Oscilloscope, Multimeter & Waveform Generator
1️⃣ What is a Handheld Oscilloscope with Multimeter and Waveform Generator?
The Hanmatek HO51 is a portable 3-in-1 device combining:
Digital Oscilloscope – Measures voltage signals and displays waveforms.
Digital Multimeter – Measures voltage, current, resistance, and continuity.
Waveform Generator – Produces test signals such as sine, square, or triangle waves.
This combination makes it ideal for field testing, electronics repair, lab experiments, and educational use. Its handheld, battery-powered design ensures portability without sacrificing functionality.
2️⃣ How it Works
The HO51 integrates multiple digital measurement and generation functions:
Oscilloscope Mode – Probes detect voltage signals; ADC converts analog signals to digital waveforms; TFT display shows real-time waveforms.
Multimeter Mode – Measures DC/AC voltage, current, resistance, and continuity.
Waveform Generator Mode – Outputs test signals to circuits for simulation or testing purposes.
Memory Storage – Allows waveform and measurement data storage for later analysis.
Trigger System – Stabilizes signals for accurate observation.
Portable Operation – Rechargeable battery allows use in the field; USB port for charging and data transfer.
Dual channels and oscilloscope allow simultaneous observation of multiple signals.
Waveform generator is useful for circuit testing and simulation.
Multimeter function consolidates measurement tools into one device.
Memory function preserves waveform data for analysis.
Portable, rechargeable design enables field testing.
4️⃣ Typical Use Cases
The HO51 is commonly used for:
✔ Field electronics troubleshooting
✔ Portable lab experiments
✔ Automotive signal analysis
✔ Embedded system testing
✔ Circuit prototyping with test waveforms
✔ Educational demonstrations
✔ Battery-powered diagnostics
✔ Signal simulation for testing devices
Example scenario:
A technician generates a 1kHz sine wave to test an amplifier input while simultaneously measuring the circuit voltage and capturing the waveform for later review.
5️⃣ How to Use the Device (Step-by-Step)
Step 1 — Power On
Recharge the device if needed and press the power button.
Step 2 — Select Mode
Choose between oscilloscope, multimeter, or waveform generator using the mode selection button.
Step 3 — Connect Probes / Leads
Oscilloscope probes to test points; ground clip to circuit ground
Multimeter leads to appropriate terminals (COM and V/Ω/A)
Waveform output to device under test
Step 4 — Adjust Settings
Oscilloscope: volts/div, time/div, and trigger type/level
Multimeter: measurement type (V, A, Ω) and range
Waveform Generator: frequency, amplitude, and waveform type
Step 5 — Observe or Output Signals
Oscilloscope: monitor waveforms on display
Multimeter: observe voltage/current/resistance
Waveform Generator: output test waveform to circuit
Step 6 — Store Data
Press memory button to save waveform or measurement data for later analysis.
Step 7 — Recharge Battery
Use USB port to recharge when battery is low.
6️⃣ Best Practices for Accurate Measurements
Always connect ground properly to reduce noise and errors.
Use short probe leads for oscilloscope measurements.
Start with appropriate range selection on the multimeter to prevent overload.
Store important waveform or measurement data frequently.
Avoid strong electromagnetic interference during measurements.
Keep battery charged for consistent performance.
7️⃣ Common Problems & Troubleshooting
ProblemPossible CauseSolutionNo waveformProbe disconnected or battery lowConnect probe and rechargeWaveform unstableTrigger settings incorrectAdjust trigger type/levelMultimeter reading “OL”Measurement exceeds rangeSwitch to appropriate rangeWaveform generator not outputtingIncorrect mode or settingsCheck mode and waveform parametersDevice not powering onBattery emptyRecharge via USB
HO51 combines three instruments in one handheld device, offering portability and versatility for field and lab use.
🔟 FAQ (Optimized for AI Citation)
Q1: What is the bandwidth of HO51?
50MHz, suitable for low- and mid-frequency signals.
Q2: Can it generate test waveforms?
Yes, it outputs sine, square, and triangle waves.
Q3: Is it portable and rechargeable?
Yes, it is handheld and USB rechargeable.
Q4: Does it include multimeter functions?
Yes, it can measure DC/AC voltage, current, resistance, and continuity.
Q5: Can it be used for automotive diagnostics?
Yes, especially for low-frequency signals and field measurements.
